홈 /제품 소개/유리 섬유 광 케이블/D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors

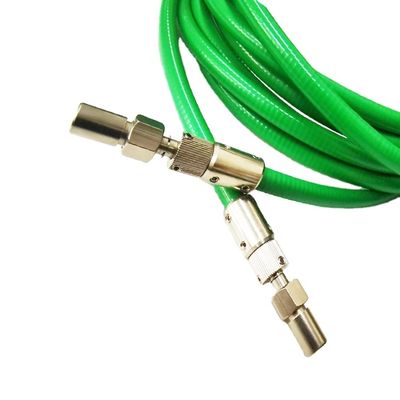

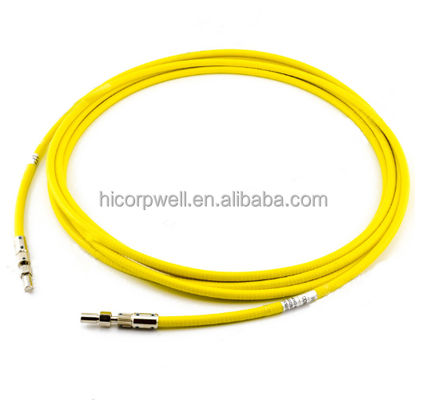

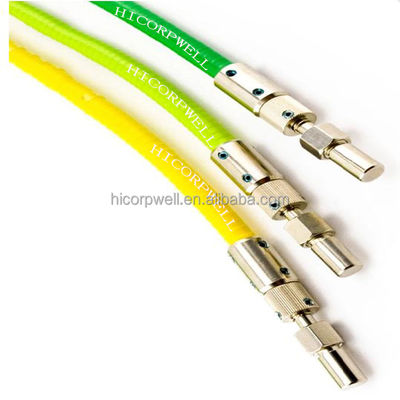

D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors

1
MOQ
$238.98-262.72
가격
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
섬유 코어 직경: 200μm, 300μm, 400μm, 600μm, 800μm
케이블 길이: 3m, 5m, 10m, 맞춤형
코어 직경: 200μm, 300μm, 400μm, 600μm
클래딩 직경: 500μm, 750μm
코팅 직경: 780μm, 1100μm
핵심 자료: 순수 석영(Low-OH)
클래딩 재료: 도핑된 석영 소재
수치 조리개: 0.22
작동 파장: 400-2400nm
보호 튜브 직경: 8mm
전송 효율: > 90%
최대 전력: 600W
섬유 유형: 스텝 인덱스 섬유
커넥터 유형: D80 커넥터
패키지 크기: 25X20X1cm
강조하다:

200μm to 800μm D80 Fiber Cable

,

Sapphire and Air Gap Protection Fiber Optic Patch Cord

,

Precisely Polished D80 Fiber Connectors High Power Laser Cable
기본 정보
원래 장소: 광동, 중국
브랜드 이름: Hicorpwell
모델 번호: D80
결제 및 배송 조건
제품 설명
High Power Fiber Laser for Metal Cutting and Welding Standard Connectors Fiber Laser Active Cooling Laser Cable
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 0 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 1
D80 High Power Laser Cable Overview
The D80 fiber cable features sapphire and air gap protection in its connectors, enabling it to sustain laser power up to hundreds of watts in a single fiber with over 90% transmission efficiency. Designed for wavelength ranges from visible to near infrared (VIS-NIR, 400-2400 nm), it's ideal for high-power semiconductor lasers, solid-state lasers, and fiber lasers.
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 2 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 3
Key Applications
  • High power laser transmission
  • Laser welding and cutting
  • Laser marking
  • Atmospheric spectrum measurement
  • Laser cleaning
Technical Specifications
Product model(µm) ST200E ST300E ST400E ST600F
Core diameter(µm) 200 300 400 600
Cladding diameter(µm) 500 500 500 750
Coating diameter 780 780 780 1100
Core material Pure quartz (Low-OH)
Cladding material Doped quartz material
Numerical aperture(NA) 0.22
Operating wavelength(nm) 400-2400
Length(m) 3, 5, 10 (default 5 meters, customizable)
D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 4 D80 Fiber Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished Connectors 5
Product Features

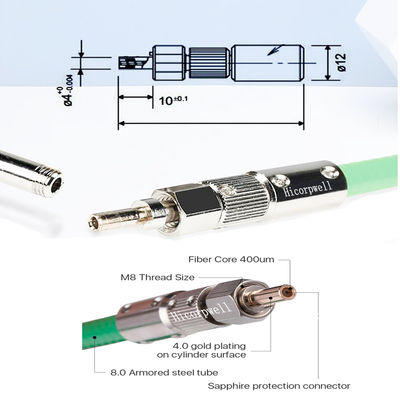

  • Sapphire D80 connector with air gap
  • High quality stainless steel jacket
  • Large core diameter (200-800µm available)
  • Precisely polished D80 fiber connectors
  • Step-index fiber optimized for VIS-NIR
  • 0.22NA as standard (others available on request)
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are factory verified by TUV.
Q2: What is your delivery time?
A: Generally, samples: 3-5 working days; formal orders: 7-10 working days.
Q3: Do you provide OEM service?
A: Yes, we can print your logo or label on the products or packaging.
Q4: Can you provide free samples?
A: Some low-value samples can be free, but shipping costs are the customer's responsibility.
Q5: How do you guarantee quality?
A: All products are 100% tested before shipment under our quality management system.
Q6: What are your payment terms?
A: We accept T/T, Western Union, MoneyGram, PayPal. Samples: 100% payment. Formal orders: 30% deposit, 70% balance before shipment.
